Position: > Product > Red Laser Module > 635nm >

Product> 635nm

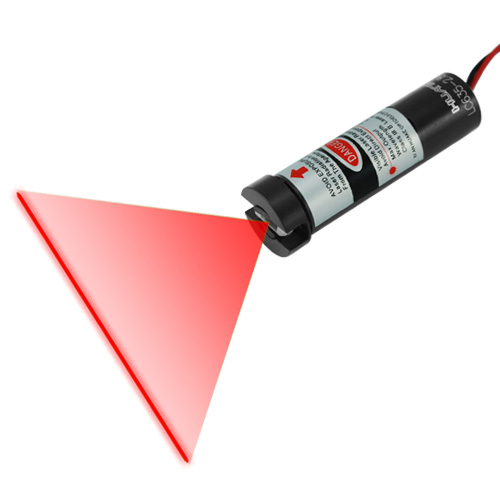

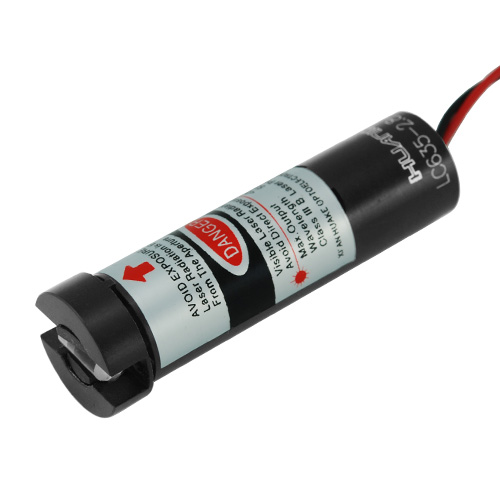

LC635-2.8-4.5(17×55)

Main Specifications:

  • Available wavelength:635nm
  • Size: Φ17mm x 55mm
  • Output power: 2mW
  • Output aperture: dia.6.8mm
  • Operating voltage: DC 3V
  • Operating current: less than 50mA
  • Line thickness:less than 0.5mm at 0.5m or less than 1.5mm at 3m or less than 2mm at 6m
  • Curvature: less than 1mm
  • Fan angle: from 10°to 110°(fixed please advise)
  • Divergence: 0.3mrad
  • Optics: glass lens both sides AR coated
  • Operating temperature: -10-+40 Celsius degree
  • Storage temperature: -40-+80 Celsius degree
  • Life time: more than 8000 hours
  • Laser safety classification: Class 2
