Product> 780nm

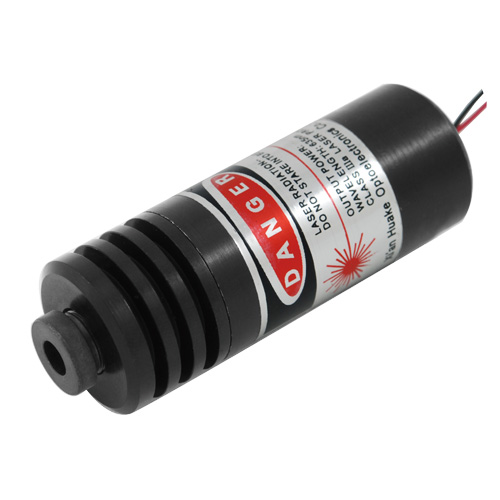

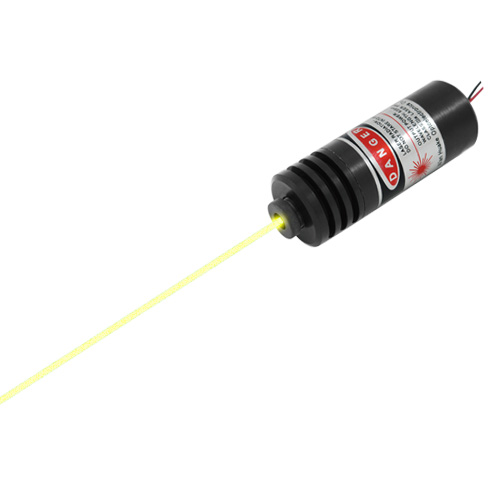

DH780-40-3(22X65)

Main Specifications:

  •  Available wavelength:780nm
  • Size:Φ22×65mm
  • Output power: 30mW
  • Output aperture: dia.5mm
  • Operating voltage: DC 3V
  • Operating current: less than 80mA
  • Standard operating distance: 10 meters focus adjustable
  • Beam character: elliptical
  • Elliptic proportion: more than 1:2.5
  • Divergence: 1.0mrad
  • Optics: glass lens both sides AR coated
  • Operating temperature: -10-+40 Celsius degree
  • Storage temperature: -40-+80 Celsius degree
  • Life time:more than 8000 hours
  • Laser safety classification: class 3
