Product> 450nm

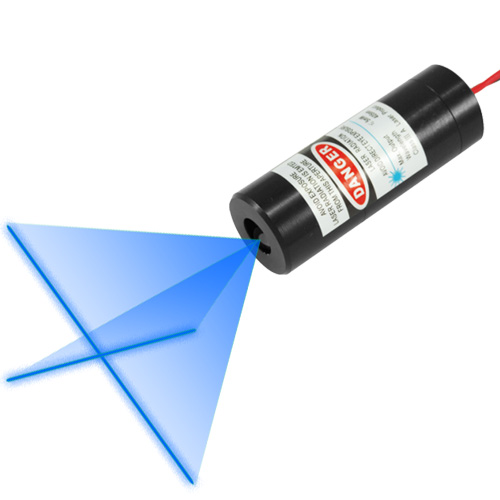

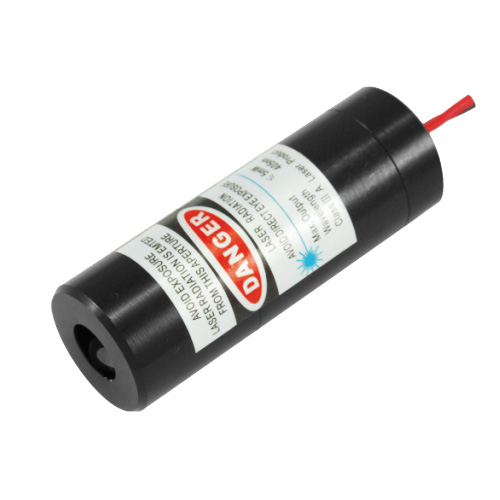

CB450-2-3(16X45)

Main Specifications:

  •  Available wavelength: 450nm
  • Size: 12x34mm
  • Output power: 5mW
  • Output aperture: dia.5mm
  • Operating voltage: DC 3V
  • Operating current: less than 70mA
  • Standard operating distance: 10 meters focus adjustable
  • Beam character: elliptical
  • Divergence: 0.5 mrad
  • Optics: glass lens both sides AR coated
  • Operating temperature: 0-50 Celsius degree
  • Storage temperature: -40-+80 Celsius degree
  • Life time: more than 5000 hours
  • Laser safety classification: class 2
