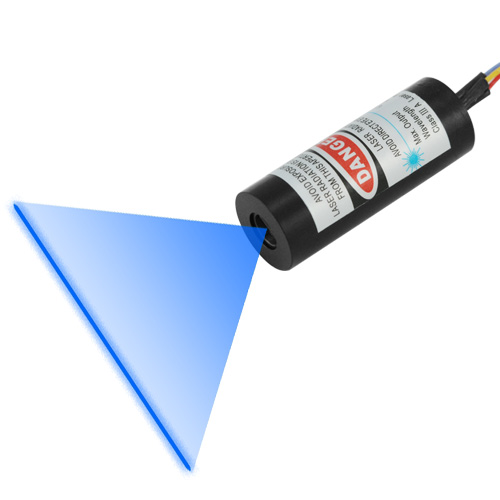

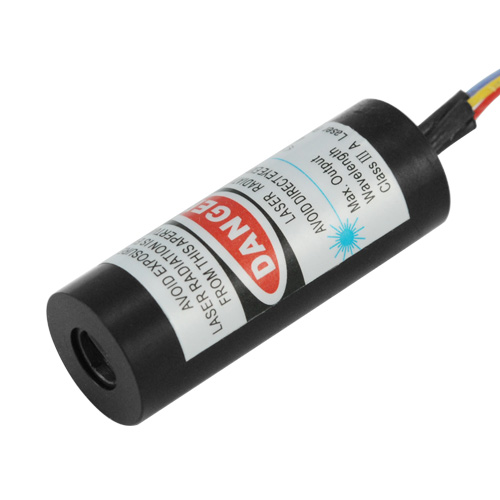

LE405-7-5(12X32)

Main Specifications:

  • Available wavelength: 405nm
  • Size: dia.14mm x len.45mm
  • Output power: 1mW
  • Output aperture: dia.5mm
  • Operating voltage:DC 3V
  • Operating current: less than 70mA
  • Standard operating distance: 10 meters focus adjustable
  • Beam character: elliptical
  • Elliptic proportion: 1:1.4
  • Divergence: 0.5mrad
  • Beam size: about 3.5 x 5mm@ 10m; 5 x 9 mm@ 20m; 12 x 17mm@ 40m
  • Optics:glass lens both sides AR coated
  • Operating temperature:-10-+40 Celsius degree
  • Storage temperature:-40-+80 Celsius degree
  • Life time:more than 8000 hours
  • Laser safety classification: class 2
