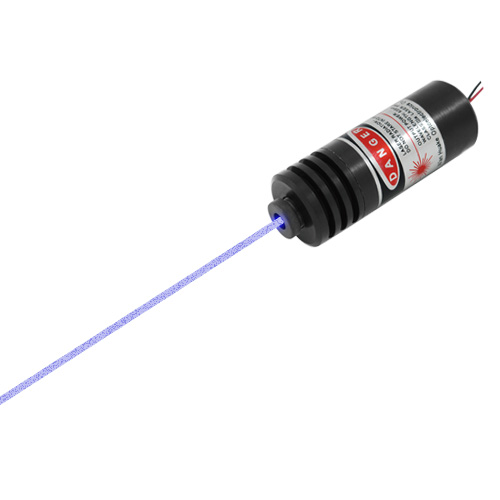

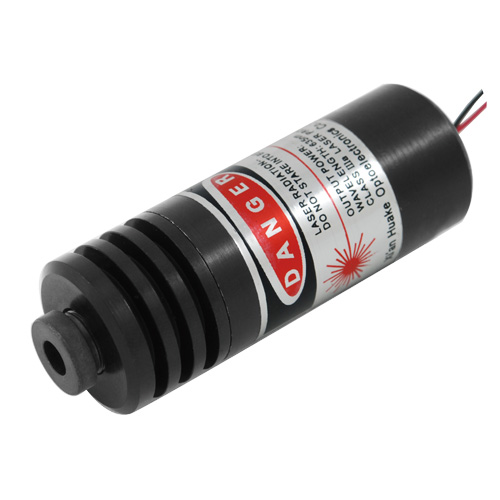

DE405-12-6(22X65)

Main Specifications:

  • Available wavelength: 405nm
  • Size: dia.14mm x 45mm with outside driver board dia.19mm
  • Output power: 5mW
  • Output aperture: dia.5mm
  • Operating voltage: DC 5V
  • Operating current: less than 80mA
  • Line thickness: less than 1mm at 1 meter or less than 3mm at 10 meters Focus adjustable
  • Curvature: less than 1mm
  • Fan angle: from 90°
  • Divergence: 0.6mrad
  • Optics: glass lens both sides AR coated
  • Operating temperature: 0-+50 Celsius degree
  • Storage temperature: -40-+80 Celsius degree
  • Life time: more than 8000 hours
  • Laser safety classification: Class 2
