520nm

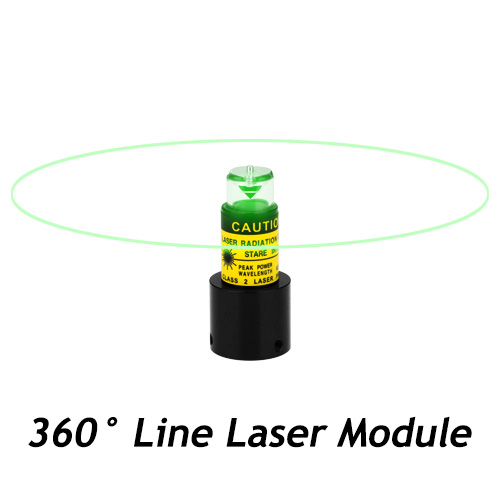

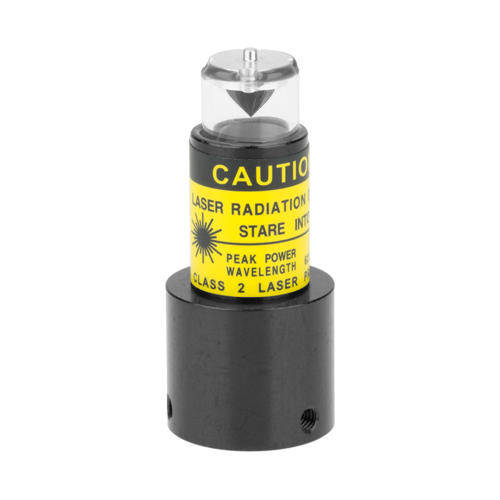

LC520-5-3(11×16×36)
Main Specifications:
- Available wavelength: 520nm±10nm
- Size: Φ12mm....... Φ23mm x 30mm (with step for easy to mount)
- Output power: 4.5mW to 5.5mW(Modulated power)
- Modulation frequency: 5KHz 10KHz
- Modulation port: avaliable
- Output aperture: Φ3.5mm
- Operating voltage: DC 4.5V(2.7 to 6.0V)
- Operating current: ≤80mA @ 25°C (DC 4.5V)
- Focusing distance: 10m
- Line thickness: ≤2.5mm at 5m
- Curvature: ≤0.5mm @ 5m
- Fan angle: ≥120°
- Divergence: 0.6mrad
- Optics: aspheric optical glass lens
- Operating temperature: -10ºC-+60 ºC
- Storage temperature: -20ºC-+70 ºC
- Output stability: ≤ ±3% at -10 ºC---+50 ºC
- Life time: ≥6000hours
- Wires: 2x150mm
- Laser safety classification: Class 2
