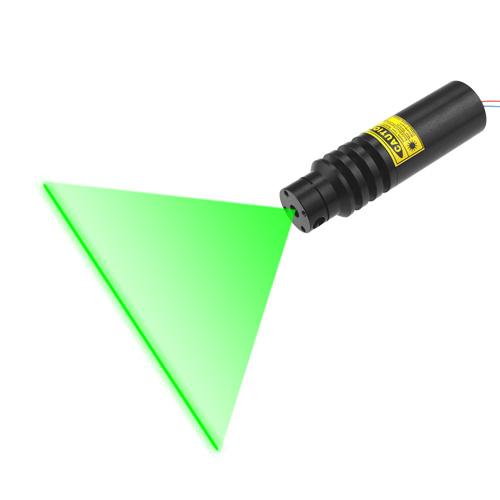

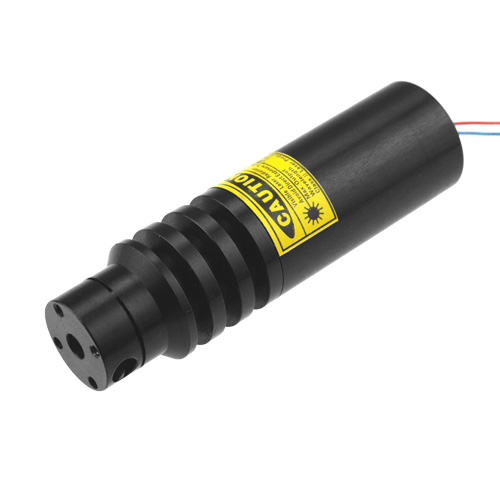

Main Specifications:

• Available wavelength: 520nm
• Size: dia.7.5mm x len.20mm with outside circuit drive board: 12mmx19mm
• Output power: about 3.5mW
• Output aperture: dia.4mm
• Operating voltage: DC 3-5V
• Operating current: less than 280mA
• Standard operating distance: 50 meters(with focusing glass lens)
• Beam character: roundish
• Beam size: about 50mm@ 100m
• Divergence: 0.4mrad
• Optics: glass lens both sides AR coated
• Crystal: Nd:YVO4 and KTP
• Beam model: TEM00 continuous output
• Operating temperature: +15-+30 Celsius degree
• Stability: less than +/-20% at +15-+30 Celsius degree
• Life time: more than 5000 hours
• Laser safety classification: class 2
